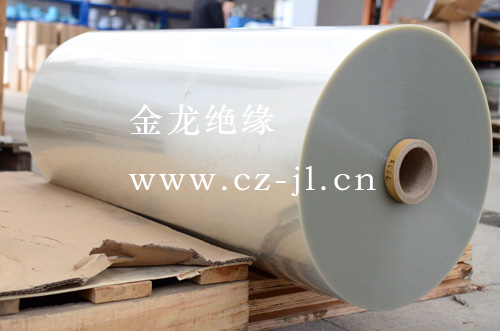

6020PET Film for Electrical Insulation

Issues time：2014-08-05 10:23:30

Thickness:0.012mm to 0.25mm
Width:1000mm
Taps:from 10mm width upwards
Sheets:approx.1000*980mm
Colour:Transparent
Application: 6020 PET Film exhibits good transparency and flexibility.It has low thickness tolerance,high mechanical strength,good heat resistance,excellent chemical resistance and excellent electric insulation properties etc.It can be applied to insulating gasket,cable,lamination,priting,apparel and packaging and so on.UL listed.

规格 Thickness		50 μm	75 μm	100 μm	125 μm	150 μm	175 μm	188 μm	检测标准 Test standard
检测内容Test Item		指标 Index							检测标准 Test standard
平均厚度μm Average thickness		50±2	75±3	100±3	125±3	150±4	175±4	188±4	GB12802.2-2004
厚度偏差% Thickness tolerance	平均偏差 Average tolerance	±2	±2	±2	±2	±2	±2	±2	GB12802.2-2004
厚度偏差% Thickness tolerance	极限偏差 Limited tolerance	±3	±3	±3	±4	±5	±5	±5	GB12802.2-2004
拉伸强度 Tensile strength Mpa	纵向MD	≥180	≥180	≥180	≥180	≥160	≥155	≥155	GB12802.2-2004
拉伸强度 Tensile strength Mpa	横向MD	≥180	≥180	≥180	≥180	≥160	≥155	≥155	GB12802.2-2004
断裂伸长率% Elongation of break	纵向MD	≥100	≥100	≥100	≥100	≥100	≥100	≥100	GB12802.2-2004
断裂伸长率% Elongation of break	横向MD	≥100	≥100	≥100	≥100	≥100	≥100	≥100	GB12802.2-2004
热收缩率% Thenmal shrinkage(155。C,15min)	纵向MD	≤1.3	≤1.3	≤1.2	≤1.2	≤1.2	≤1.2	≤1.2	GB12802.2-2004
热收缩率% Thenmal shrinkage(155。C,15min)	横向MD	≤0.5	≤0.5	≤0.5	≤0.5	≤0.5	≤0.5	≤0.5	GB12802.2-2004
雾度% Haze		≤2.5	≤3.0	≤3.5	≤3.5	≤3.5	≤4.0	≤4.0	GB12802.2-2004
透光率% Light penetrability		≥86	≥85	≥85	≥85	≥85	≥84	≥84	GB2410
润湿张力 Wetting tension Dyn/cm	非电晕ncn.corona	≤40							GB12802.2-2004
润湿张力 Wetting tension Dyn/cm	电晕 corona	≤40							GB12802.2-2004
密度 g/cm3 Density		1.4±0.010
