6640-NMN
Issues time：2014-08-05 09:44:59
6640NMN consists of Polyester film,covered on both sides with Nomex 464 paper.The used adhesive is H Class .NMN is a combined flexible material of thermal rating Class F and Class H with excellent mechanical properties and high electrical properties.NMN has a smooth surface which is used in low voltage motors.NMN is used as interlayer insulation in transformers and other electrical machines and appliances.

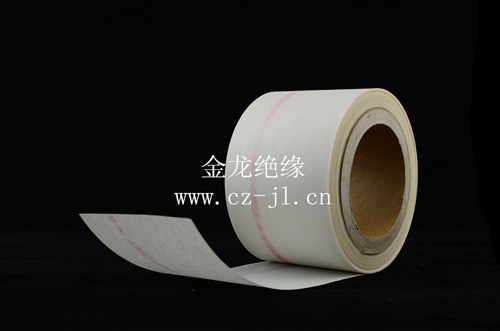

The store of NMN is sealed and in dry place.This product is usually supplied in rolls with 914mm width.It also can be supplied in forms of sheets and tapes.The sheet is approx. 914*1000mm or according to your order.The tape is from 5mm width upwards.
The store of NMN is sealed and in dry place.This product is usually supplied in rolls with 914mm width.It also can be supplied in forms of sheets and tapes.The sheet is approx. 914*1000mm or according to your order.The tape is from 5mm width upwards.
|
指标名称 |
单位 |
指标值 | ||||||||||
|
Technical Specification |
Unit |
Values | ||||||||||
|
标称厚度 Thickness |
mm |
0.14 |
0.17 |
0.19 |
0.21 |
0.24 |
0.28 |
0.35 |
0.40 |
0.45 | ||
|
厚度极限偏差 |
mm |
±0.02 |
±0.02 |
±0.02 |
±0.03 |
±0.03 |
±0.03 |
±0.035 |
±0.040 |
±0.045 | ||
|
标称定量及极限偏差 |
g/m2 |
135±14 |
170±17 |
205±21 |
240±24 |
275±28 |
331±33 |
414±41 |
483±48 |
554±55 | ||
|
薄膜标称厚度 |
mm |
0.05 |
0.075 |
0.10 |
0.125 |
0.15 |
0.188 |
0.25 |
0.30 |
0.35 | ||
|
拉伸强度 |
纵向 |
不弯折 |
N/10 mm width |
≥160 |
≥170 |
≥190 |
≥220 |
≥240 |
≥270 |
≥330 |
≥350 |
≥400 |
|
横向 |
不弯折 |
≥90 |
≥105 |
≥120 |
≥150 |
≥210 |
≥250 |
≥300 |
≥330 |
≥350 | ||
