6650-NHN

Issues time:2014-08-05 09:32:37

6650-NHN绝缘纸

6650-NHN绝缘纸

6650-NHN绝缘纸

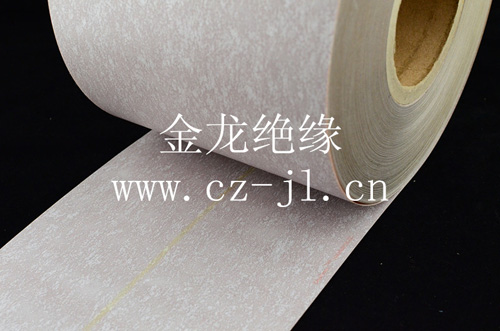

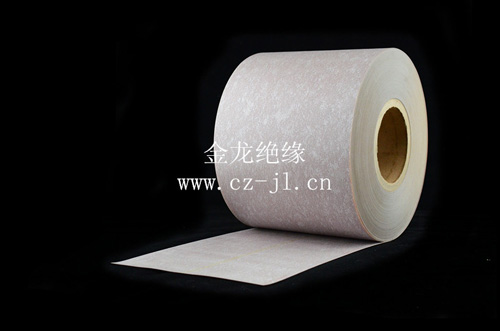

NHN consists of Polyimid film,covered on both sides with calandered Nomex paper.
NHN is a combined flexible material of thermal rating class H (180°C) with good mechanical properties like high tensile strength and high edge tear resistance combined with high electrical strength.
NHN is mainly used as a slot liner,slot closure and phase insulation in thermal high stressed electrical motors.
Besides this NHN is used as interlayer insulation in transformers and other electrical machines and appliances.


序号
NO.

Technical Specification

指标值

Technical Specification

Unit

Values

1

标称厚度
Thickness

mm

0.15

0.17

0.20

0.23

0.25

0.30

0.33

2

厚度极限偏差
Thickness Tolerance

mm

±0.02

±0.02

±0.03

±0.03

±0.04

±0.04

±0.05

3

标称定量及极限偏差
Nominal Grammage and Tolerance

g/m2

155±25

175±25

195±30

230±35

260±40

300±45

330±50

4

拉伸强度
Tensile Strength

纵向
MD

不弯折
No Bending

N/10 mm width

≥120

≥140

≥160

≥180

≥200

≥250

≥270

横向
TD

不弯折
No Bending

≥80

≥90

≥100

≥110

≥120

≥150

≥170

5

伸长率
Elongation

纵向
MD

≥10

横向
TD

≥8

6

击穿电压
Breakdown Voltage

KV

≥80

≥8

≥9

≥9

≥9

≥10

≥10

7

常态粘结性

不分层
No delamination

Bond strength at 25 degree C

8

热态粘结性

不分层,不起泡,不流胶
No delamination,no blister,no adhesive flow

Bond strength at 200±2 degree C in 10 min

9

温度指数
Temperature

180
